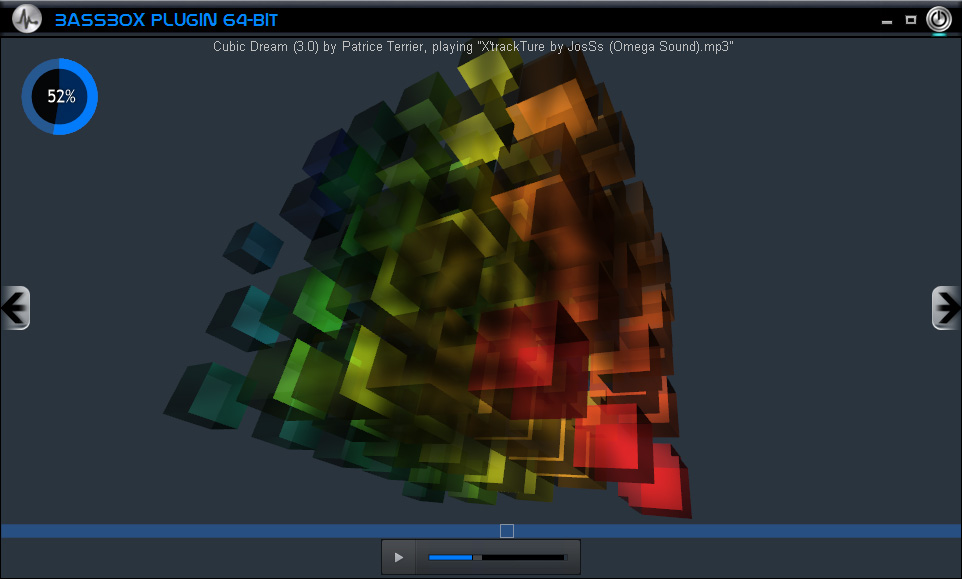

The purpose of this application is to switch easily from one plugin to another to check the OpenGL FPO effects transposed to 64-bit.
Most of them inherit from the original 32-bit version written long ago in PowerBASIC for BassBox.
You can use drag & drop from the Explorer to play any audio file supported by Bass.dll.
To navigate from one plugin to another move the cursor to the left or right edge of the window, and click on the auto/hide arrow.
Here is the BBP API to use to communicate with the plugin DLL.
See in the WM_TIMER message the gl_DrawScene() code using BBP_RenderOpenGL to pass the wimdata pointer to the DLL.
Code: Select all
#pragma once
'typedef ULONGLONG QWORD;
#include once "GL/gl.bi"
Const BBP_RENDER = 1 ' Render the scene.
Const BBP_CREATE = 2 ' Retrieve Title, Name, Version, Render mode.
Const BBP_INIT = 3 ' Init the OpenGL.
Const BBP_SIZE = 4 ' The size of the control has changed.
Const BBP_KEYBOARD = 5 ' All keyborad message.
Const BBP_MOUSE = 6 ' All mouse messages.
Const BBP_DESTROY = 7 ' Free Up resources.
Const BBP_NEW_SOUND = 8 ' We are playing a new sound file.
Const BBP_GDIPLUS = 0 ' GDImage GDIPLUS compatible mode.
Const BBP_OPENGL = 1 ' OpenGL mode.
Const BBP_DIRECTX = 2 ' DirectX mode (for future extension).
Const BBP_SUCCESS = 0
Const BBP_ERROR = -1
Type QWORD As ULongInt ' Equivalent to ULONGLONG
Type BBPLUGIN
msg As ULong
parent As HWND
dc As HDC
rc As HGLRC
lpeak As UShort
rpeak As UShort
title As ZString * 32
author As ZString * 64
version As ULong
renderto As Long
backargb As Long
fftdata As Single Ptr
fftsize As UShort
winmsg As ULong
wparam As WPARAM
lparam As LPARAM
wimdata As Short Ptr
medialength As QWord
mediapos As QWord
reserved As ZString * 56
End Type ' 256 bytes
Function BBP_ProcHandle(ByVal hProc As FARPROC, ByVal RW As Long) As FARPROC
Static WasHproc As FARPROC
If (RW) Then WasHproc = hProc
Return WasHproc
End Function
Function BBP_Plugin(ByRef BBP As BBPLUGIN) As Long
Dim nRet As Long = BBP_ERROR
If IsWindow(gP.hGL) Then
Dim glRC As HGLRC = Cast(HGLRC, ZI_GetProperty(gP.hGL, ZI_GLRC))
If glRC <> 0 Then
' Retrieve stored procedure
Dim hProc As Any Ptr = BBP_ProcHandle(0, 0)
If hProc Then
' Define a delegate type for the plugin proc
Dim pluginProc As Function(ByRef BBP As BBPLUGIN) As Long
pluginProc = Cast(Function(ByRef BBP As BBPLUGIN) As Long, hProc)
nRet = pluginProc(BBP)
End If
End If
End If
Return nRet
End Function
Function BBP_ActivePlugin(ByVal sPluginName As WString Ptr, ByVal RW As Long) As WString Ptr
Static sWasPluginName As WString * MAX_PATH
If (RW) Then wcscpy(@sWasPluginName, sPluginName)
Return @sWasPluginName
End Function
Sub MarqueeUpdate()
Dim zDrive As WString * _MAX_DRIVE
Dim zDir As WString * _MAX_DIR
Dim zFname As WString * _MAX_FNAME
Dim zExt As WString * _MAX_EXT
wsplitpath(gB.audiofile, zDrive, zDir, zFname, zExt)
ClearMemory(@gP.plugintitle, sizeof(gP.plugintitle))
wcscpy(@gP.plugintitle, @gP.title)
Add_Str(@gP.plugintitle, @gP.version)
Add_Str(@gP.plugintitle, !" by ")
Add_Str(@gP.plugintitle, @gP.author)
Add_Str(@gP.plugintitle, !", playing """)
Add_Str(@gP.plugintitle, @zFname)
Add_Str(@gP.plugintitle, zExt)
Add_Str(@gP.plugintitle, !"""")
ZD_SetObjectText(ID_COPYRIGHT, gP.plugintitle)
End Sub
Sub BBP_Reset()
Dim BBP As BBPLUGIN
ClearMemory(@BBP, sizeof(BBP))
BBP.msg = BBP_CREATE
BBP_Plugin(BBP)
ClearMemory(@gP.title, sizeof(gP.title))
wcscpy(@gP.title, cswconv(BBP.title)) ' C string to WCHAR
ClearMemory(@gP.author, sizeof(gP.author))
wcscpy(@gP.author, cswconv(BBP.author)) ' C string to WCHAR
Dim majorVersion As UByte = (BBP.version And &hFF)
Dim minorVersion As UByte = ((BBP.version Shr 8) And &hFF)
ClearMemory(@gP.version, sizeof(gP.version))
gP.version = !" (" + Wstr(majorVersion) + !"." + Wstr(minorVersion) + !")"
MarqueeUpdate()
if (BBP.renderto = BBP_OPENGL) Then
glDisable(GL_BLEND)
glDisable(GL_TEXTURE_2D)
glDisable(GL_DEPTH_TEST)
glDisable(GL_LIGHT0)
glDisable(GL_LIGHT1)
glDisable(GL_LIGHT2)
glDisable(GL_LIGHT3)
glDisable(GL_LIGHT4)
glDisable(GL_LIGHT5)
glDisable(GL_LIGHT6)
glDisable(GL_LIGHT7)
glDisable(GL_LIGHTING)
glDisable(GL_COLOR_MATERIAL)
glDisable(GL_ALPHA_TEST)
glDisable(GL_NORMALIZE)
glDisable(GL_LINE_SMOOTH)
glDisable(GL_LINE_SMOOTH)
glGetError()
End If
End Sub
Sub BBP_Detached(ByVal hWnd As HWND, ByRef hLib As HMODULE)
Dim BBP As BBPLUGIN
if (hLib) Then
BBP.msg = BBP_DESTROY
BBP.parent = hWnd
BBP_Plugin(BBP)
' Brute force to delete any existing texture
Const Tmax As Long = 64
Dim DT(0 To Tmax - 1) As GLuint
For K As Long = 0 To Tmax - 1
DT(K) = K
Next
glDeleteTextures(Tmax, @DT(0))
BBP_ProcHandle(0, 1)
FreeLibrary(hLib): hLib = 0
End If
End Sub
Sub BBP_ResizeOpenGL()
if (IsWindow(gP.hGL)) Then
Dim BBP As BBPLUGIN
ClearMemory(@BBP, sizeof(BBP))
BBP.msg = BBP_SIZE
BBP.parent = gP.hGL
BBP_Plugin(BBP)
End If
End Sub
' Load/unload plugin DLL to/from memory
Function BBP_LoadPlugin(ByVal hWnd As HWND, ByVal zPlugin As WString Ptr) As Long
Dim nDone As Long = BBP_ERROR
Dim nLen As Long = lstrlenW(zPlugin)
if ((nLen) And (_wcsicmp(zPlugin, BBP_ActivePlugin(0,0)) <> 0)) Then
if (FileExistW(*zPlugin)) Then
if (gP.hLib) Then BBP_Detached(hWnd, gP.hLib)
gP.hLib = LoadLibraryW(zPlugin)
if (gP.hLib) Then
Dim hProc As FARPROC = GetProcAddress(gP.hLib, "BBProc")
If hProc <> 0 Then
BBP_ProcHandle(hProc, 1)
BBP_ActivePlugin(zPlugin, 1)
BBP_Reset()
nDone = BBP_SUCCESS
End If
End If
End If
ElseIf (nLen = 0) Then
If (gP.hLib) Then BBP_Detached(hWnd, gP.hLib)
End If
Return nDone
End Function
Function BBP_AttachPlugin(ByVal zPlugin As WString Ptr) As Long
gP.pluginloaded = 0
If IsWindow(gP.hGL) Then
If BBP_LoadPlugin(gP.hGL, zPlugin) = BBP_SUCCESS Then
Dim BBP As BBPLUGIN
ClearMemory(@BBP, SizeOf(BBP))
BBP.msg = BBP_INIT
BBP.parent = gP.hGL
BBP.dc = Cast(HDC, ZI_GetProperty(gP.hGL, ZI_GLDC))
BBP.rc = Cast(HGLRC, ZI_GetProperty(gP.hGL, ZI_GLRC))
BBP.backargb = 0
BBP_Plugin(BBP)
BBP.msg = BBP_SIZE
BBP_Plugin(BBP)
wcscpy(@gP.bin.lastplugin, zPlugin)
gP.pluginloaded = -1
End If
End If
Return gP.pluginloaded
End Function
Sub BBP_RenderOpenGL(ByVal nLevel As DWORD, ByVal pInt As Short Ptr)
Dim BBP As BBPLUGIN
ClearMemory(@BBP, SizeOf(BBP))
Dim glDC As HDC = Cast(HDC, ZI_GetProperty(gP.hGL, ZI_GLDC))
Dim glRC As HGLRC = Cast(HGLRC, ZI_GetProperty(gP.hGL, ZI_GLRC))
If glRC <> 0 Then
BBP.msg = BBP_RENDER
BBP.parent = gP.hGL
BBP.dc = glDC
BBP.rc = glRC
BBP.lpeak = SolvePeak(LOWORD(nLevel), 128)
BBP.rpeak = SolvePeak(HIWORD(nLevel), 128)
BBP.backargb = 0
BBP.fftdata = Cast(Any Ptr, BassChannelGetData())
BBP.fftsize = 256
BBP.medialength = gB.medialength
BBP.mediapos = gB.mediapos
BBP.wimdata = pInt
BBP_Plugin(BBP)
' Refresh display
SwapBuffers(glDC)
InvalidateRect(gP.hGL, NULL, 0)
UpdateWindow(gP.hGL)
End If
ReleaseDC(gP.hGL, glDC)
End Sub
Sub BBP_NewSound()
Dim BBP As BBPLUGIN
ClearMemory(@BBP, SizeOf(BBP))
BBP.msg = BBP_NEW_SOUND
BBP_Plugin(BBP)
End Sub
Link to download the project
